Approved by govt of India

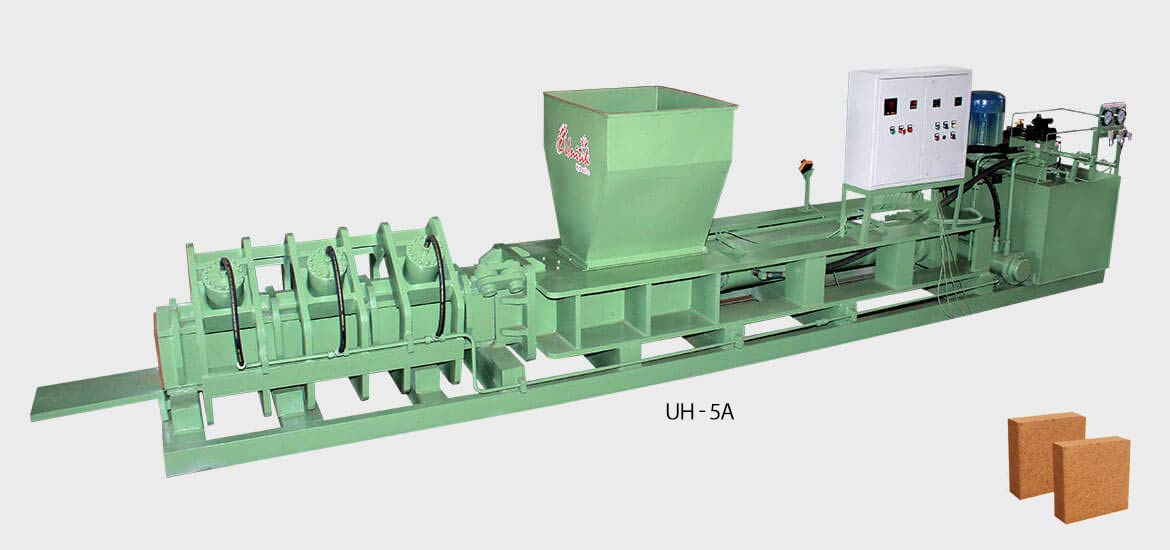

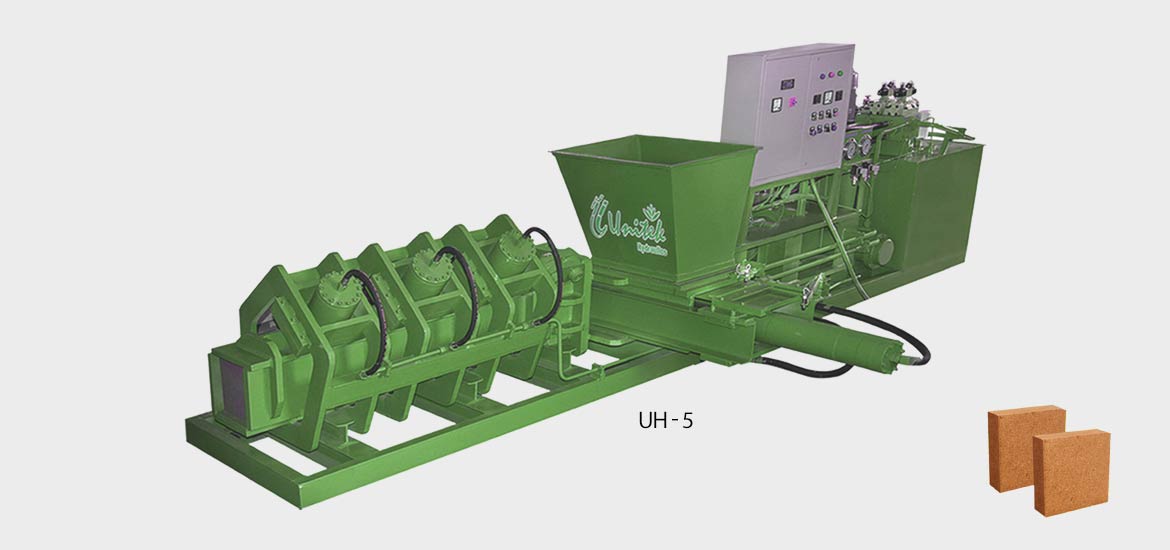

5 kg Coir Pith Block making Machine

We are engaged in manufacturing 5kg coir pith block making machines that are made in adherence to industry standards. The machine is fabricated using top-grade raw materials and advanced technology. We also test the machine on various parameters to ensure a hassle-free experience.

Features

  • Strong and sturdy in construction
  • Optimum performance
  • Corrosion resistance

Specifications

UH-5 UH-5A
Block size 300 x 300 x100-120 mm 300 x 300 x100-120 mm
Block weight 5kgs 5kgs
Material input volume 80 litres per cycle 80 litres per cycle
Compacting tonnage 80 tons 80 tons
Max operating pressure 180 bar 180 bar
Compacting ratio 1:7 1:7
Power
20 HP
25 HP
20 HP
25 HP
Production capacity /Hr/ shift (8 hours)
150-160 / 6 tons
170-180 / 7 tons
110-120 / 5 tons
140-150 / 6 tons
Approx. wt. of machine 4.75 tons 5.75 tons
Shipping dimension 5.5 x 2.5 x1.5 meters 6.5 x 2.5 x1.5 meters
